Ultrasonic welding (USW) is a precise, efficient, and versatile joining method that utilizes high-frequency ultrasonic vibrations to bond materials like thermoplastics, metals, and composites by generating heat through mechanical vibrations at the material interface.
The ultrasonic welder plays a crucial role in this process, generating the high-frequency sound waves needed to create the heat and pressure required for the bonding.
In this article, we will explore the basic principles of ultrasonic welding, the mechanisms behind material bonding, and the physical phenomena occurring at the interface during the welding process.
What is Ultrasonic Welding?
Ultrasonic welding is a solid-state joining process that uses high-frequency sound waves, typically in the range of 20 kHz to 70 kHz, to bond materials. Unlike traditional welding methods that use heat or pressure to melt and fuse materials, ultrasonic welding employs mechanical vibrations to create localized heat at the materials’ interface, causing them to bond without reaching their melting point.

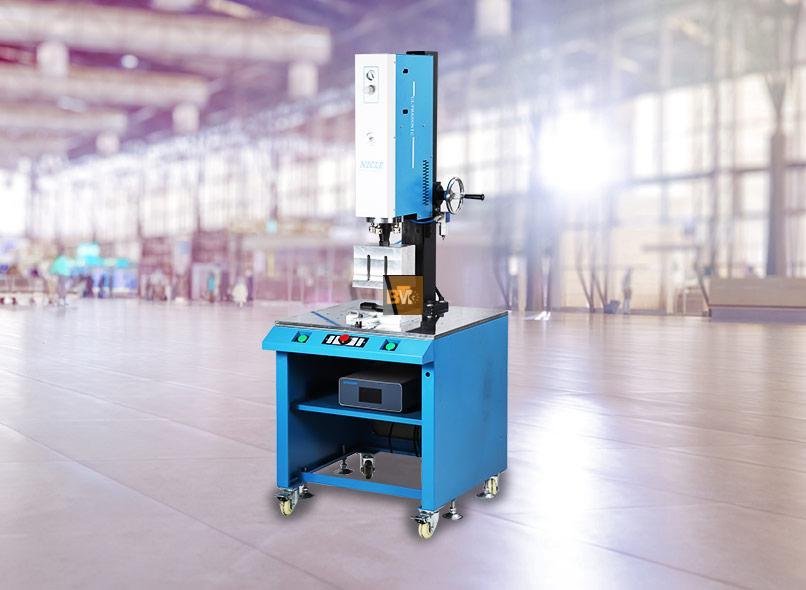

The ultrasonic plastic welding equipment generates ultrasonic vibrations, which are then transmitted through the welding machine’s components and focused on the materials to be welded. The vibrations cause frictional heating at the interface, allowing the materials to bond without the need for any external heat source.
Basic Principles of Ultrasonic Welding
To understand how ultrasonic welding works, it’s important to explore the core principles behind ultrasonic energy generation and transmission.
1. Generation of Ultrasonic Energy
The ultrasonic welding process relies on a series of components that work together to generate and transmit ultrasonic energy. These include:
- Power Supply: The power supply provides electrical energy to the ultrasonic welder, converting it into mechanical vibrations.
- Transducer: The transducer is responsible for converting electrical energy into mechanical ultrasonic vibrations. The transducer typically uses a piezoelectric element, which changes shape when an electrical current is applied, resulting in high-frequency vibrations.
- Booster: The booster amplifies the ultrasonic vibrations from the transducer, increasing their intensity before they reach the workpiece.
- Horn (Sonotrode): The horn focuses the vibrations onto the material interface, further amplifying them to deliver the energy where it is most needed. The horn’s shape is carefully designed to control the amplitude of the vibrations.
In the case of ultrasonic plastic welding machine, the ultrasonic energy is directed specifically to the materials being joined, where it creates the necessary conditions for bonding.
The plastic welding machine typically uses a set of precise parameters such as frequency and amplitude to ensure effective plastic welding. These machines can handle various materials, ensuring high-quality and durable joints in industries requiring precision, such as the electronics and medical sectors.
2. Transmission of Ultrasonic Energy
Once the ultrasonic energy is generated, it is transmitted through the components of the ultrasonic welding system to the materials. The energy is primarily focused at the interface between the materials to be welded, where it generates frictional heat. This heat is localized, making it ideal for delicate materials such as plastics and thin metals.
The efficiency of energy transmission can vary based on the material properties of the workpieces. For example, the acoustic impedance of different materials affects how easily ultrasonic vibrations are transferred.
Plastic ultrasonic welding machines are designed to optimise this energy transmission for materials like thermoplastics, ensuring that the ultrasonic vibrations create the necessary heat for effective bonding.
The Mechanism of Material Bonding
The bonding mechanism in ultrasonic welding is fundamentally driven by the heat generated from mechanical vibrations. Here’s a breakdown of how the process works:
1. Vibration-Induced Friction
As ultrasonic vibrations are applied to the materials, the interface between them experiences friction. This friction generates localized heat, which reduces the material’s resistance to deformation. This heat is concentrated at the interface, allowing the surfaces to soften and bond.
In ultrasonic welding plastic machines, the plastic material at the interface softens under the applied vibrations, facilitating the bonding process. The frictional forces are particularly effective when joining thermoplastics, as the material flows easily under heat, creating a strong bond.
2. Plastic Deformation at the Interface
The ultrasonic vibrations cause plastic deformation at the interface between the materials. This deformation allows the materials to interlock on a microscopic scale, forming a bond.
For thermoplastics, the heat softens the material, enabling it to flow and bond with the adjacent material. Metals, on the other hand, experience plastic deformation that results in a solid-state bond, without the need for melting.
The use of ultrasonic plastic welding machines ensures that the energy delivered is optimally controlled, preventing overheating or melting of the material while still achieving a high-quality bond. The result is a strong, reliable connection without the need for additional adhesives or fasteners.
3. Material Flow and Bond Formation
As the ultrasonic vibrations continue, the material at the interface flows and bonds on a molecular level. In ultrasonic plastic welding equipment, this bonding is achieved through the softened plastic molecules, which fuse together to create a solid connection. For metal-to-metal applications, the process may form an intermetallic bond, ensuring a strong, durable weld.
The precision of ultrasonic welding machines for plastic allows for controlled bonding, which is particularly beneficial for joining small components or delicate parts. The non-melting nature of the process means there is no risk of distorting or weakening the materials.
Physical Phenomena at the Interface
The interface between the materials is where the key physical phenomena occur that make ultrasonic welding possible. Understanding these phenomena is essential for grasping the fundamental workings of the process.
1. Vibration-Induced Heat Generation
The primary physical phenomenon at the interface is the generation of heat through vibration-induced friction. As the ultrasonic vibrations are transmitted through the materials, atoms at the interface begin to vibrate, producing heat. This localized heat is what allows the materials to soften and bond together.
The ability of the ultrasonic welding plastic machine to generate this heat precisely at the material interface is what makes the process so effective. By focusing the vibrations at the contact points, the system ensures that bonding occurs without excessive heating or thermal damage to the materials.
2. Surface Flattening and Cleaning
The ultrasonic vibrations also help to flatten any microscopic surface irregularities at the interface, improving the contact area between the materials. This flattening of the surfaces enhances the quality of the bond. Additionally, ultrasonic vibrations can help clean the interface by breaking down any oxide layers or contaminants present on the materials, which further improves bonding.
In the case of plastic ultrasonic welding machines, this cleaning action is especially important, as it ensures that the surfaces to be joined are free from debris, ensuring a strong and clean weld.
3. Solid-State Bonding
Unlike traditional welding techniques that rely on melting, ultrasonic welding uses solid-state bonding to create the weld. The material undergoes plastic deformation without reaching its melting point, which allows for a clean, strong bond without the complications that come with molten materials.
For metals, this solid-state bonding is ideal as it avoids issues such as oxidation or distortion caused by melting. In the case of ultrasonic plastic welding machines, the plastic material bonds without reaching the liquid phase, preserving the integrity of the material.
Applications of Ultrasonic Welding
Ultrasonic welding finds applications across a wide range of industries due to its precision and speed. Some of the most common applications include:
- Automotive Industry: Joining electronic components, sensors, and battery packs.
- Electronics: Bonding small components like semiconductors, connectors, and wires.
- Medical Devices: Welding plastic components for syringes, diagnostic tools, and medical implants.
- Consumer Goods: Assembly of plastic parts for products such as mobile phones, toys, and packaging.
For each of these applications, the plastic welding machine is designed to meet the specific needs of the materials being welded. For instance, ultrasonic welders for plastic are optimized for precise bonding of delicate plastic parts, while ultrasonic welder systems can handle more robust materials like metals and composites.
Conclusion
Ultrasonic welding provides an efficient, reliable, and versatile solution for bonding materials across various industries.
By understanding the principles and mechanisms behind ultrasonic welding, you can appreciate why it is a preferred method for joining materials in modern manufacturing processes.
